Water Filters, Salt Free Conditioners

UV Disinfection - Pathogens Solution

1-3 Bathrooms

12 GPM

Brand: KlearFlo

Model: KUV12

Dealer Install Price: Call

Factory-Direct Price: Call

SAVINGS

3-6 Bathrooms

16 GPM

Brand: KlearFlo

Model: KUV16

Dealer Install Price: Call

Factory-Direct Price: Call

SAVINGS

6+ Bathrooms

20 GPM

Brand: KlearFlo

Model: KUV20

Dealer Install Price: Call

Factory-Direct Price: Call

SAVINGS

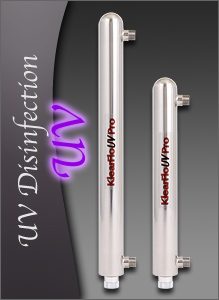

The KlearFlo UV Disinfection allows disinfection to your water without the use of chemicals. UV disinfection for both Well and City Water applications is a good idea. The KlearFlo UV Disinfection systems have been tested by BioVir Laboratories, using E.coli bacteria. Test results indicate KlearFlo UV Disinfection systems are capable of providing the 40 mJ/cm2 dose requirement for E.coli bacteria disinfection at maximum flow rates for both models. Based on these tests, the log reduction of E.coli bacteria was between 2.07 to 3.03, which is 99.1 to 99.9 percent reduction of E.coli bacteria.

Benefits of UV Disinfection:

Disinfection without chemicals.
Effective disinfection for chlorine resistant bacteria, virus cysts.
Lamps rated for 12 month continuous service life.
Highly polished 304 stainless steel reactor chamber.
Audible and visual alarm indicating lamp failure.
Easy lamp replacement service.
Available in 110v and 220v.
30mj/cm2 dose at specified flow rate at the end of lamp life.
Quartz sleeve and lamps.

Water Filters, Salt Free Conditioners

Tested 99.1% to 99.9% Reduction

UV Disinfection Water Quality Guidelines

Total Iron:

Hydrogen Sulfide (H2S):

Turbidity:

Manganese:

Hardness:

UV Transmittance:

less than 0.3 mg/l

less than 0.05 mg/l

less than 10 mg/l

less than 0.05 mg/l

less than 7 gpg

greater than 90%

The KlearFlo UV Disinfection systems have been tested by BioVir Laboratories, using E.coli bacteria. Test results indicate KlearFlo UV Disinfection systems are capable of providing the 40 mJ/cm2 dose requirement for E.coli bacteria disinfection at maximum flow rates for both models. Based on these tests, the log reduction of E.coli bacteria was between 2.07 to 3.03, which is 99.1 to 99.9 percent reduction of E.coli bacteria.

KlearFlo Model #:

UV Max Flow Rate:

UV Pipe Size:

UV Dimensions:

UV Electrical:

UV Chamber Materials:

UV Min Water Temperature:

UV Max Water Temperature:

UV Max Pressure:

UV Dose (end of life):

UV Lamp Life:

UV Lamps Per Chamber:

KUV12

12 GPM (Gallons Per Minute)

3/4"

14.5" x 4"

110v & 220v both @50-60 Hz

304 Stainless Steel

36 F

104 F

125 PSI

30 mf/cm2

9,000 Hours

Single

KUV12 Includes:

Stainless Steel Chamber & All Connections
One UV Bulb
One UV Bulb Sleeve
Owner's Manual
Money Back Guarantee
Limited Lifetime Warranty on Tank & Parts

KlearFlo Model #:

UV Max Flow Rate:

UV Pipe Size:

UV Dimensions:

UV Electrical:

UV Chamber Materials:

UV Min Water Temperature:

UV Max Water Temperature:

UV Max Pressure:

UV Dose (end of life):

UV Lamp Life:

UV Lamps Per Chamber:

KUV16

16 GPM (Gallons Per Minute)

3/4"

20.5" x 4"

110v & 220v both @50-60 Hz

304 Stainless Steel

36 F

104 F

125 PSI

30 mf/cm2

9,000 Hours

Single

KUV16 Includes:

Stainless Steel Chamber & All Connections
One UV Bulb
One UV Bulb Sleeve
Owner's Manual
Money Back Guarantee
Limited Lifetime Warranty on Tank & Parts

KlearFlo Model #:

UV Max Flow Rate:

UV Pipe Size:

UV Dimensions:

UV Electrical:

UV Chamber Materials:

UV Min Water Temperature:

UV Max Water Temperature:

UV Max Pressure:

UV Dose (end of life):

UV Lamp Life:

UV Lamps Per Chamber:

KUV20

20 GPM (Gallons Per Minute)

20.5" x 4"

110v & 220v both @50-60 Hz

304 Stainless Steel

36 F

104 F

125 PSI

30 mf/cm2

9,000 Hours

Single

KUV20 Includes:

Stainless Steel Chamber & All Connections
One UV Bulb
One UV Bulb Sleeve
Owner's Manual
Money Back Guarantee
Limited Lifetime Warranty on Tank & Parts

KlearFlo UV Chamber Limited Lifetime Warranty

KlearFlo Water Systems warrants to the end user (customer) that it's UV Chamber will be free from defects in material and workmanship under normal use and service for the life of the system. No warranty is made with respect to defects or damaged due to neglect, misuse, alterations, accident, misapplication, physical damage, installation on water quality outside guidelines for system or damaged caused by fire, acts of God, or freezing.
